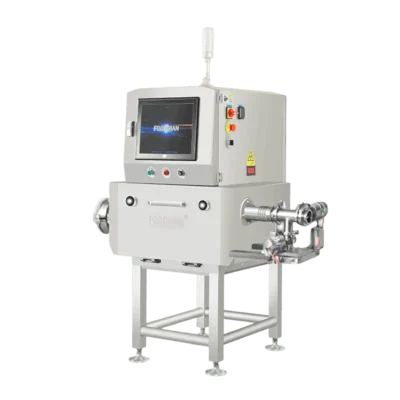

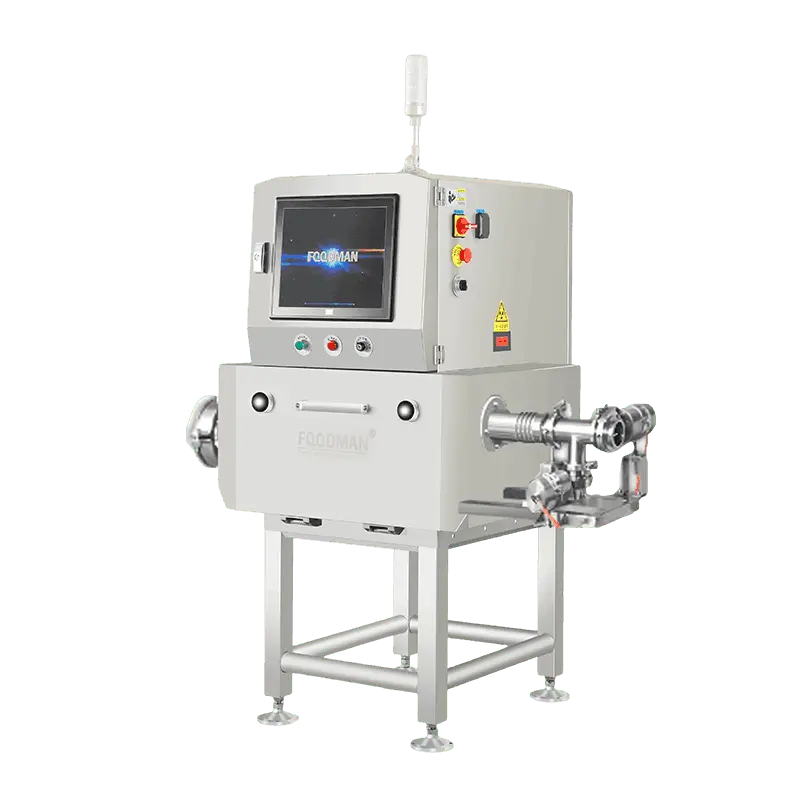

Pipeline X-Ray Inspection System
The Pipeline X-Ray Inspection System provides high-precision contaminant detection for liquids, pastes, and pumped products, ensuring the removal of metal, glass, bone, and plastic before packaging. Designed for seamless production line integration, it enhances food safety, quality control, and compliance across industries like dairy, sauces, beverages, and meat processing.
Our Pipeline X-Ray Inspection System is designed for liquids, pastes, and pumped products, providing high-precision contaminant detection before packaging. It ensures food safety by identifying foreign objects like metal, glass, bone, and hard plastic in real-time.
With automated rejection, seamless production line integration, and high-speed scanning, the Pipeline X-Ray Inspection System enhances quality control and minimizes contamination risks. Ideal for dairy, sauces, beverages, and meat processing, it guarantees safe and high-quality products for consumers.
Upgrade your inspection process with our advanced Pipeline X-Ray Inspection System and stay ahead in food safety and compliance.
APPLICATIONS
sauces
purees
ice cream
minced meat
TECH SPECS
Model: FXR-P50/60/80
X-Ray Tube: 40-100KV
Pipe Diameter: 50mm/60mm/80mm （Pipe diameter can be customized）
Working Speed: 30m/min
Operation: 17-inch colored touch screen, Windows System
X-Ray Leakage: ＜1μSv per hour
Transport Direction: Left to Right (Right to left optional)
Support data interface: LAN Port, USB Port, RS232, Ethernet
Power Supply: AC220V/110V±10%, 50Hz/60Hz, maximum 1.5KVA
Rejector: 3-Way Valve rejector
Waterproof Level: IP69
Operating Requirement: Temperature：-10℃～40℃，Humidity: 30%～95%
Main Structure: SUS304 Stainless Steel
KEY FEATURES
High-precision Contaminant Detection
Able to detect foreign matter such as metal (iron, non-iron, stainless steel), hard bone, calcified bone, glass, stone, ceramic, high-density plastic, etc.
Dynamic Position Tracking Technology
Adopts dynamic position tracking technology to ensure accurate removal of contaminants, while reducing waste of good products and improving production efficiency.
Intelligent Image Analysis
Dual-energy detection technology combined with image processing technology to achieve clearer foreign matter detection and lower false alarm rate.
Efficient Rejection System:
Equipped with a three-way automatic rejection valve to ensure effective removal of contaminants and minimize the waste of qualified products.
Adaptable to Complex Environments:
Adopts stainless steel structure, meets IP69 protection standards, and is suitable for harsh production environments such as high temperature, high humidity, and high-pressure cleaning.
Convenient Cleaning and Maintenance
Designed with detachable detection components, it is easy to clean and maintain quickly and improve equipment availability.
What Makes FOODMAN X-RAY INSPECTION SYSTEM DIFFERENT?
Intelligent Networking and Remote Diagnosis
