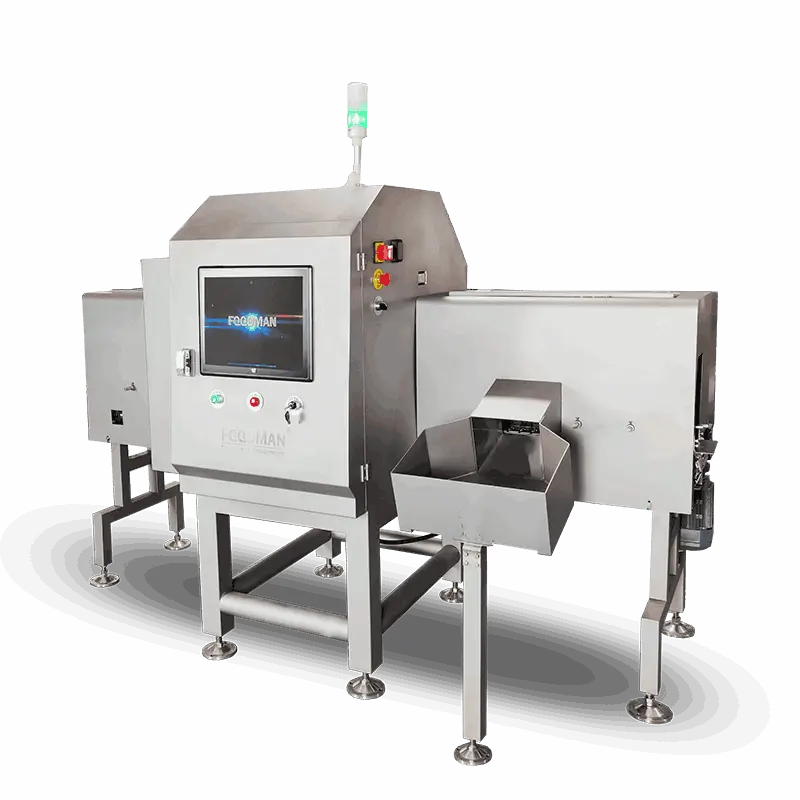

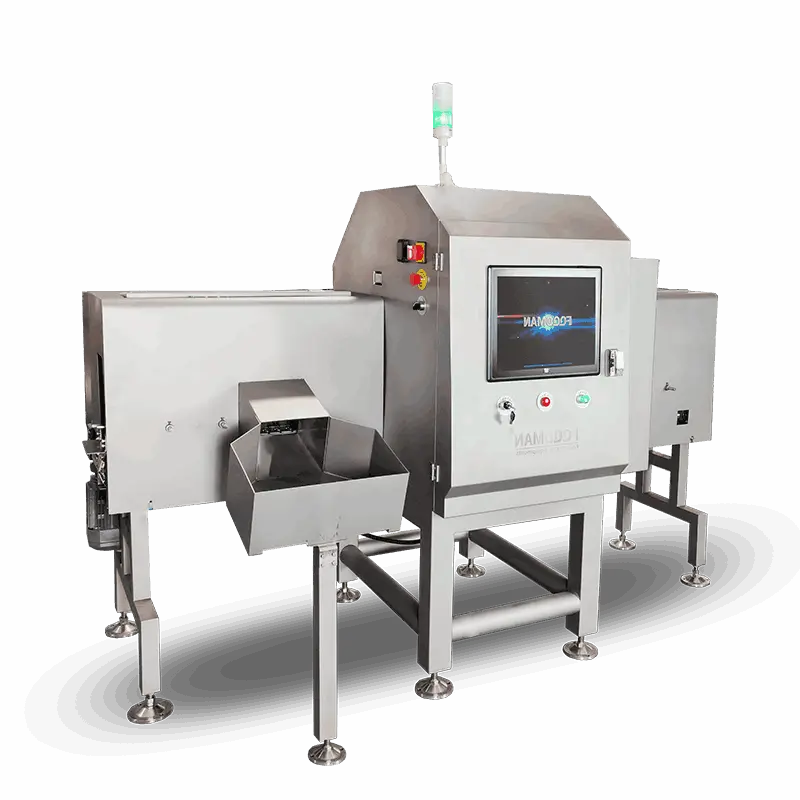

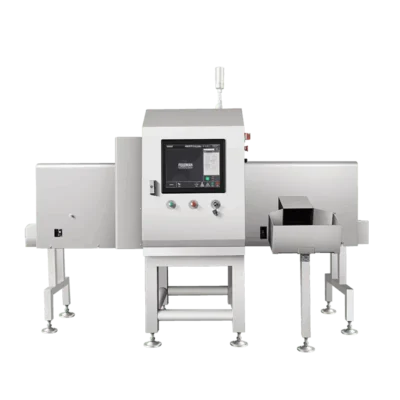

Single Beam Side Scan X-Ray Inspection System FXR-C180
With a unique design for the vertical state of the bottle, cans, boxes, and other products’ foreign body detection.
The single beam X-ray inspection system is widely utilized in industries such as baby products, textiles, and pharmaceuticals.
It not only detects contaminants like metal, bones, glass, ceramics, stones, plastic, and rubber but also ensures product quality by identifying defective products and missing components.
Additionally, the system features a specialized design, making it ideal for inspecting vertical packaging such as cans, paper bags, and boxes.
APPLICATIONS
vertical bottled products
vertical canned products
vertical boxed products
vertical tin packaged products
TECH SPECS
Model: FXR-C180
X-Ray Tube: 40-120KV
Aperture Size: Width: 180mm; Height:250mm
Working Speed: 10-100m/min
Sensitivity(mm):
Stainless Steel Ball: Ф0.3
Stainless Steel Wire: Ф0.2*2
Ceramic: Ф1.0
Glass: Ф1.0
Operation: 17-inch colored touch screen, Windows System
Support data interface: LAN Port, USB Port
Power Supply: AC220V±10% 50Hz(60Hz), 1.5KVA Max
Rejector: Pusher
Waterproof Level: IP66 for tunnel, IP54 for rest part
Operating Requirement: Temperature：-10℃～40℃，Humidity：30%～90%
Main Structure: SUS304 Stainless Steel
KEY FEATURES
Single Beam Technology
Equipped with advanced single-beam scanning technology for precise detection of contaminants and foreign objects in various food products.
Compact and Efficient
Designed to maximize space efficiency while providing comprehensive scanning for various food types, including packaged and unpackaged goods.
Suitable for Vertical Products
The food X-ray machine features a specialized design, making it ideal for inspecting vertical boxes, cans, paper bags, and cartons.
High Accuracy
With remarkable sensitivity, our food X-ray inspection equipment can identify metal balls as small as 0.3mm, ensuring precise detection of contaminants.
User-Friendly Interface
Features an intuitive control panel for easy operation, with automated settings that enhance inspection speed and accuracy.
Customizable Rejection System
Includes flexible rejection systems to remove defective or contaminated products with accuracy and minimal waste.
